Facility's

Facilities

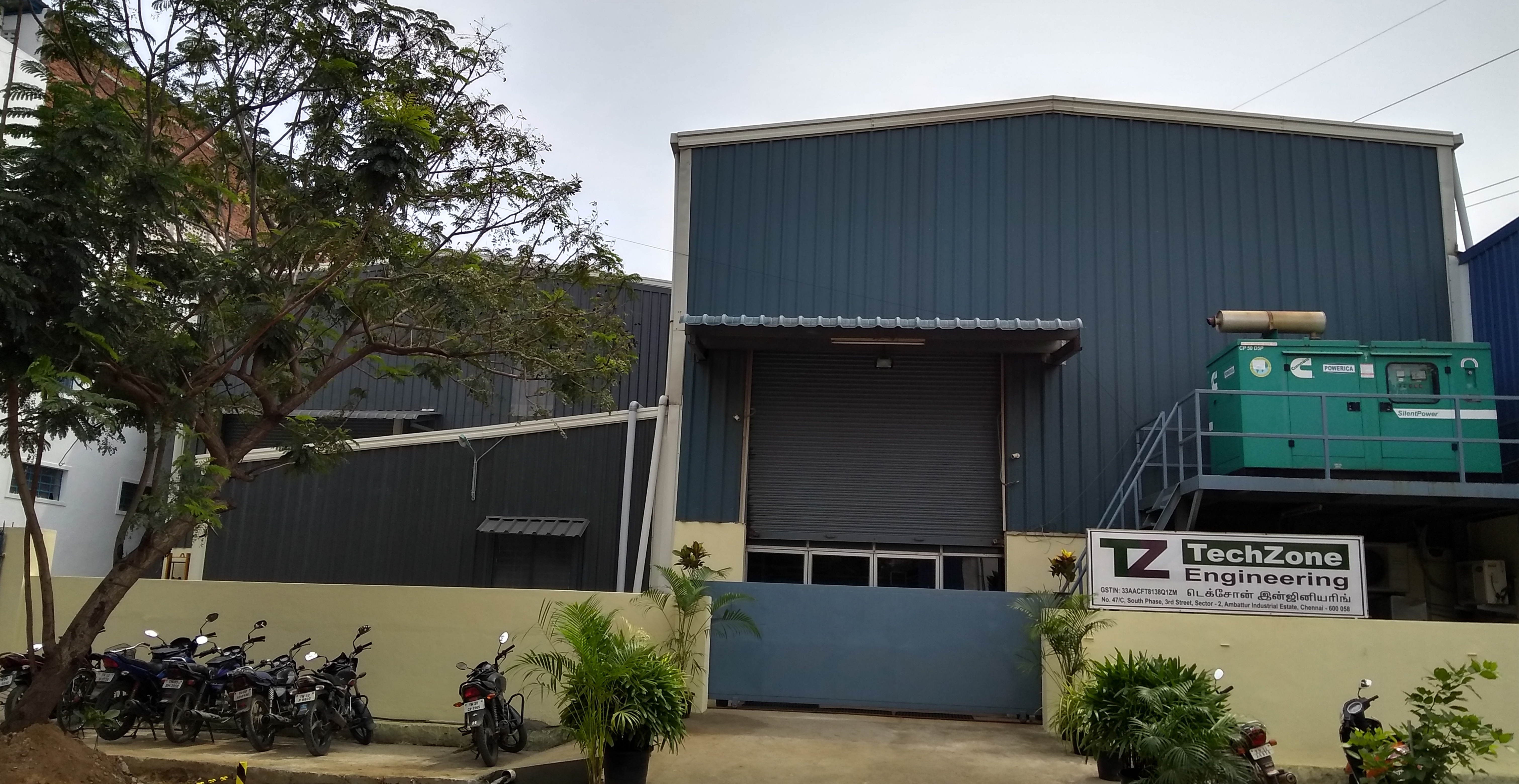

INFRASTRUCTURE

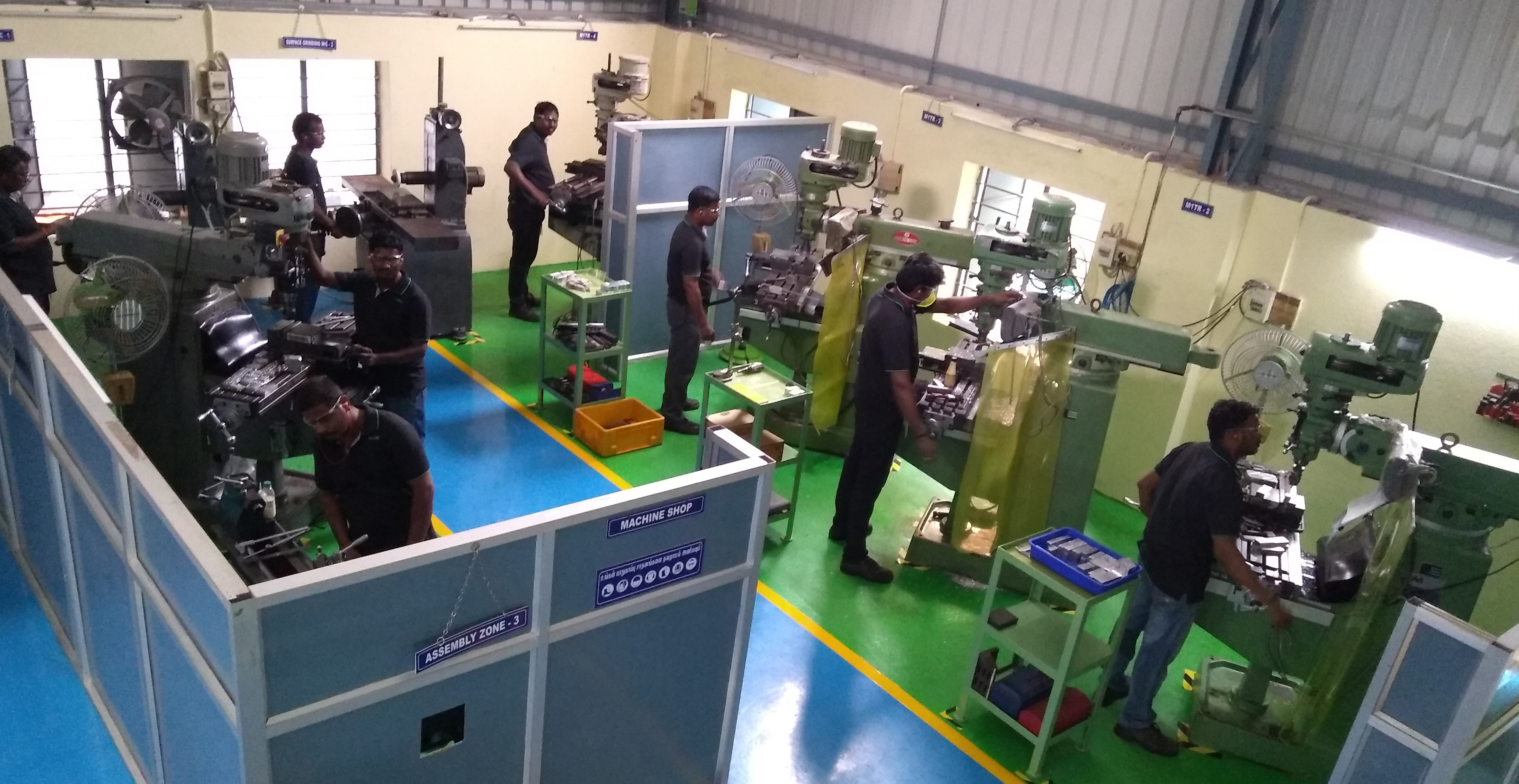

CONVENTIONAL M/C' S ZONE

S.No Description size Qty
1 M1TR 900 x 300 x 400 5 Nos.
2 Surface Grinding 420 x 200 x 300 2 Nos.
3 Turning Machine 4.5' 2 Nos.
4 Drilling Machine 25mm 2 Nos.
5 Band Saw 3000 X 27 X0.9 1 No.

PROCESS FLOW

  • Design – Starts with Conceptual to Final Design as per Customer Specification.

  • Raw Material Selection – High Grade Material - Aluminum Alloys & Stainless Steel, Mild Steel.

  • Machine Selection – High End Precision CNC Machines

  • Inspection – High Accurate Certified CMM for Validation

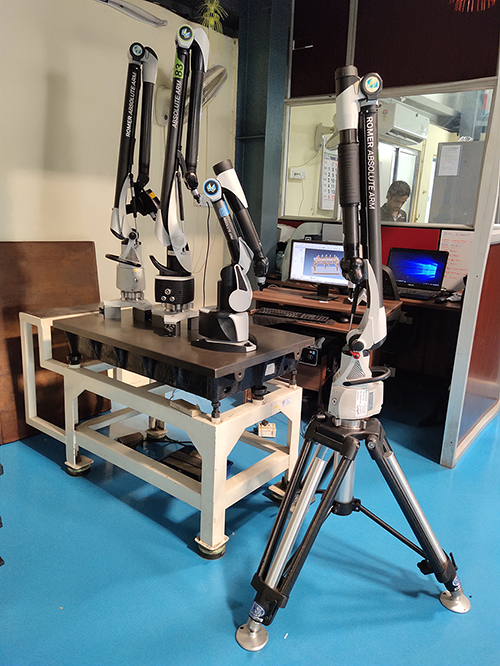

CMM' S SPECIFICATION

S.No Make - Hexagon size Qty
1 7525 Probing 2.5 mm 1No.
2 7525 Probing / Scanning 2.5 mm 1No.
3 8512 Probing 1.5 mm 1No.
4 8512 Probing / Scanning 2.5 mm 1No.
Validation Software
Software Polyworks
Probing Scanning
3 Modules 3 Modules

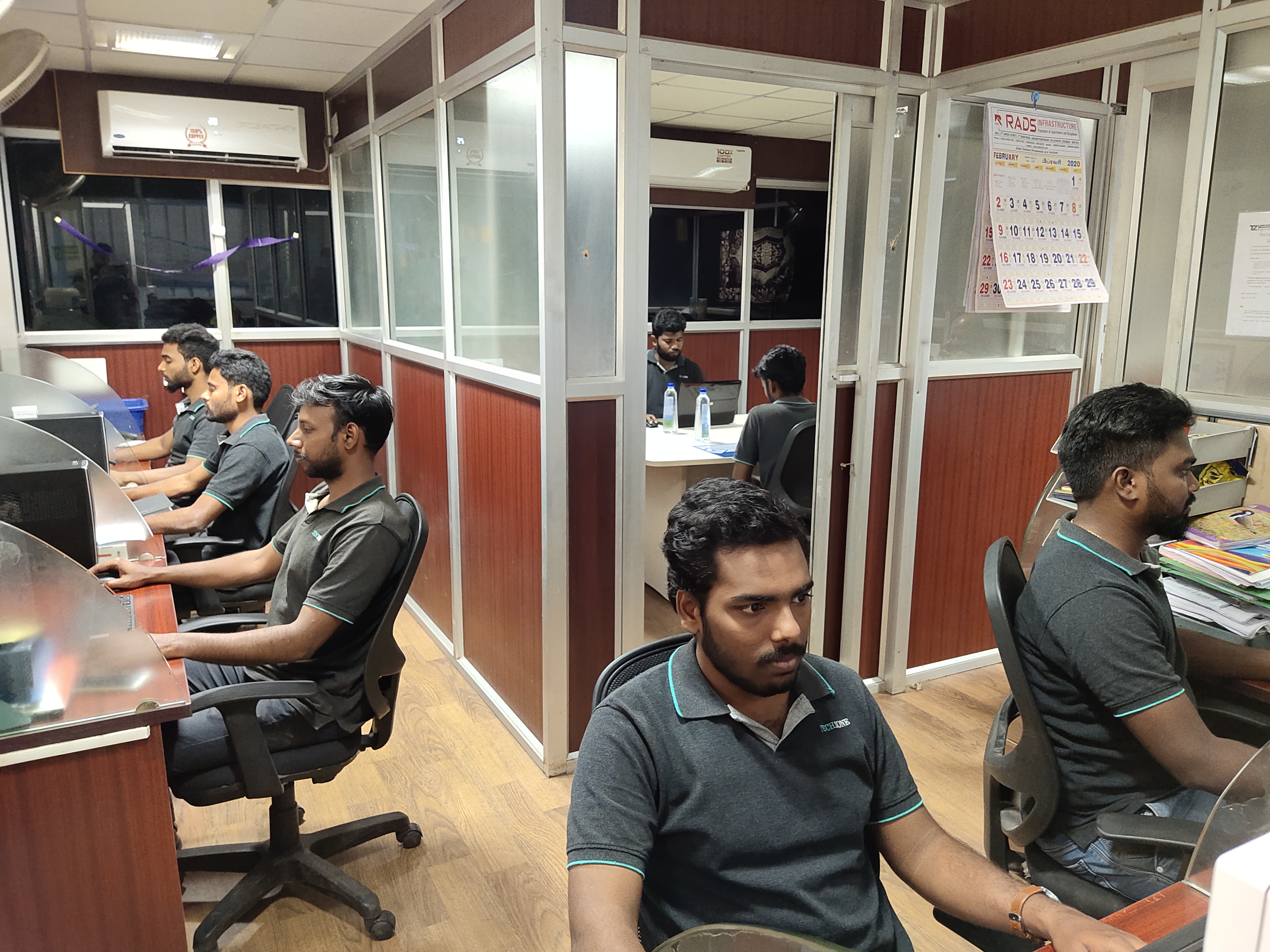

DESIGN FACILITY

Desgin Software
Software Work Sation
3d Experience 1 Station
Catia V5 7 Stations
Auto cad 2019 7 Stations

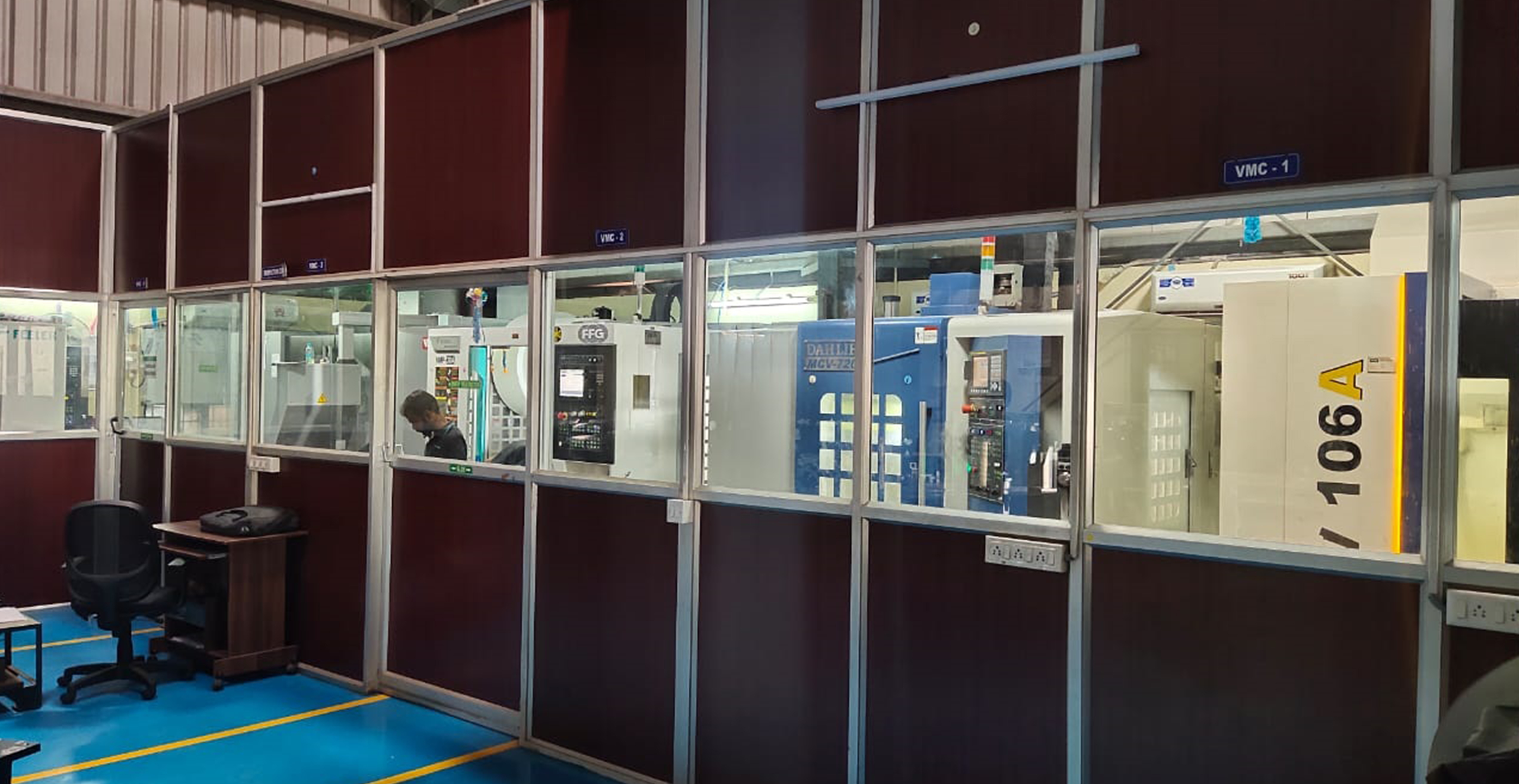

MACHINE CENTER'S

S.No Make size Qty
1 YCM / NMV - 106A 1120 x 600 x 600 2 Nos.
2 DAHLIH - 720 950 x 560 x 510 2 Nos.
3 WELE / AAI - 1365 1450 x 650 x 600 1 No.
4 FEELER / VMP - 30A 890 x 420 x 510 2 Nos.
5 FEELER / VMP - 23A 650 x 420 x 510 1 No.

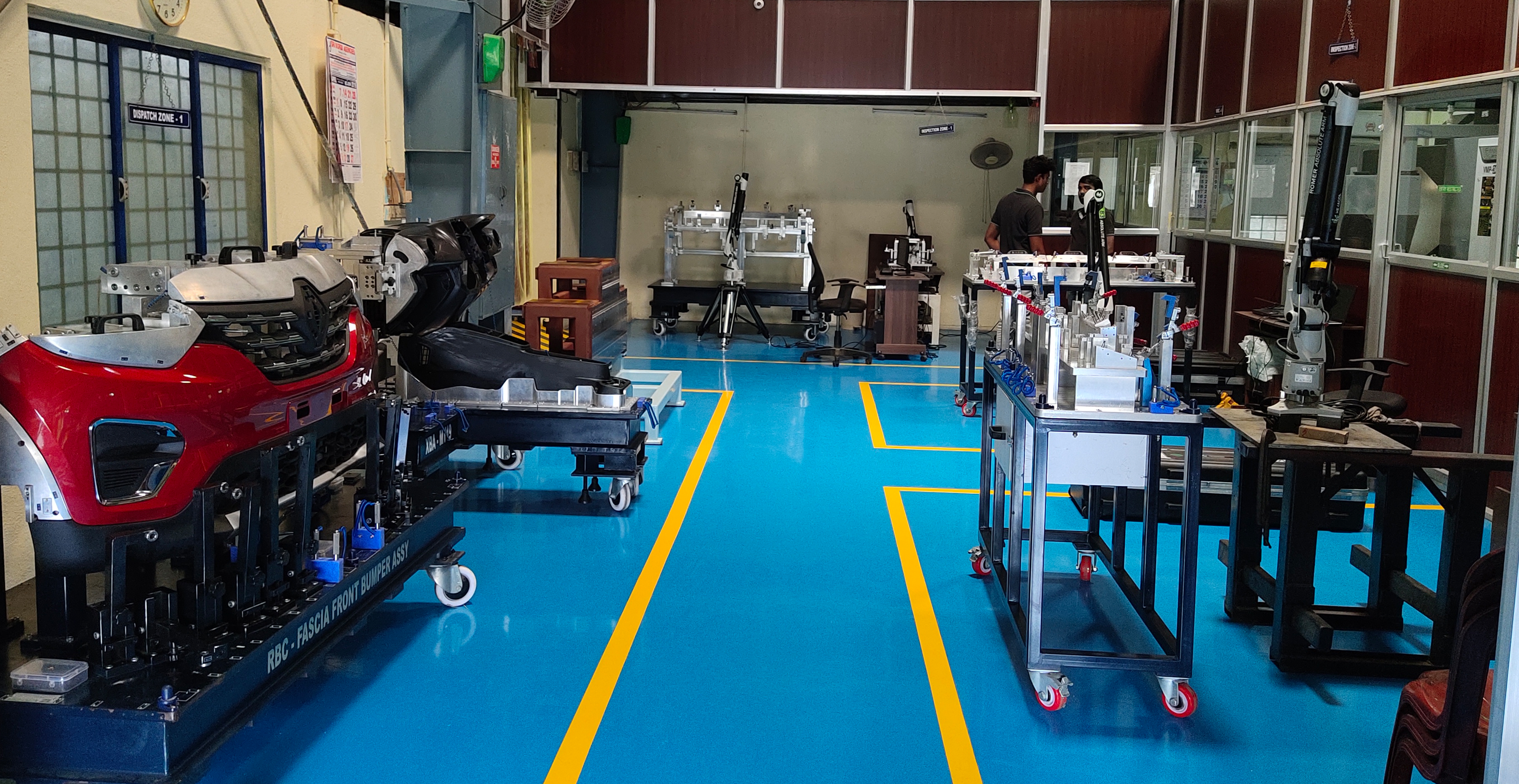

BUY - OFF AREA

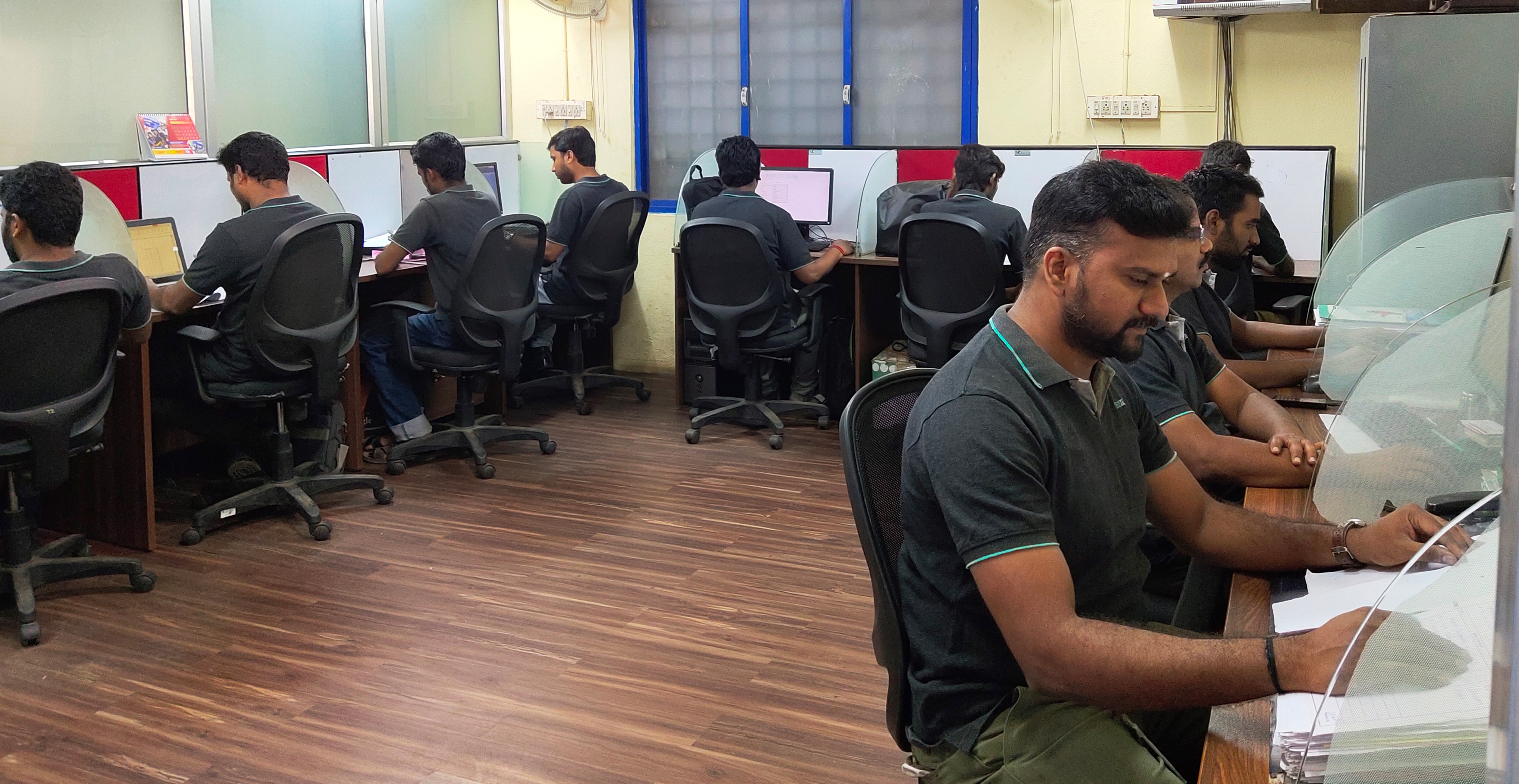

ENGINEERING ROOM

CONFERENCE ROOM
